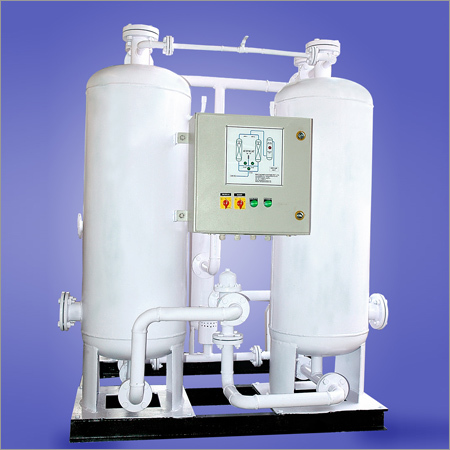

Desiccant Dryer

Desiccant Dryer

DESIGN PARAMETER: 100% RH, Inlet Temp. 40 deg. C Operating Pr. 16 bar Max. However units for higher-pressure up to 150 bar can also be supplied.

WORKING PRINCIPLE: Regenerative Desiccant Compressed Air Dryers are an economical process to reduce the moisture content of the compressed air to achieve the dew point as low as minus 80 deg C. The dry Compressed Air ( at consistent ) dew point is continuously achieved by using Twin Towers packed with desiccant. While one tower is on-stream- drying the compressed air, passing small percentage of dry air is regenerating the other. The cycle is repeated at pre- set interval. DEW POINT: up to minus 80 deg. C While one tower is on-stream-drying the compressed air, passing small percentage of dry air is regenerating the other. The cycle is repeated at pre-set interval

DEW POINT:- up to minus 80^OC

FEATURES:

• Design of Drying Tower to ensure the proper channeling of compressed air through the desiccant bed.
• State of Art software based highly accurate sequence timer
• Reliable and easy maintainable change over valve.
• Low pressure drops
• Low noise during exhaust
